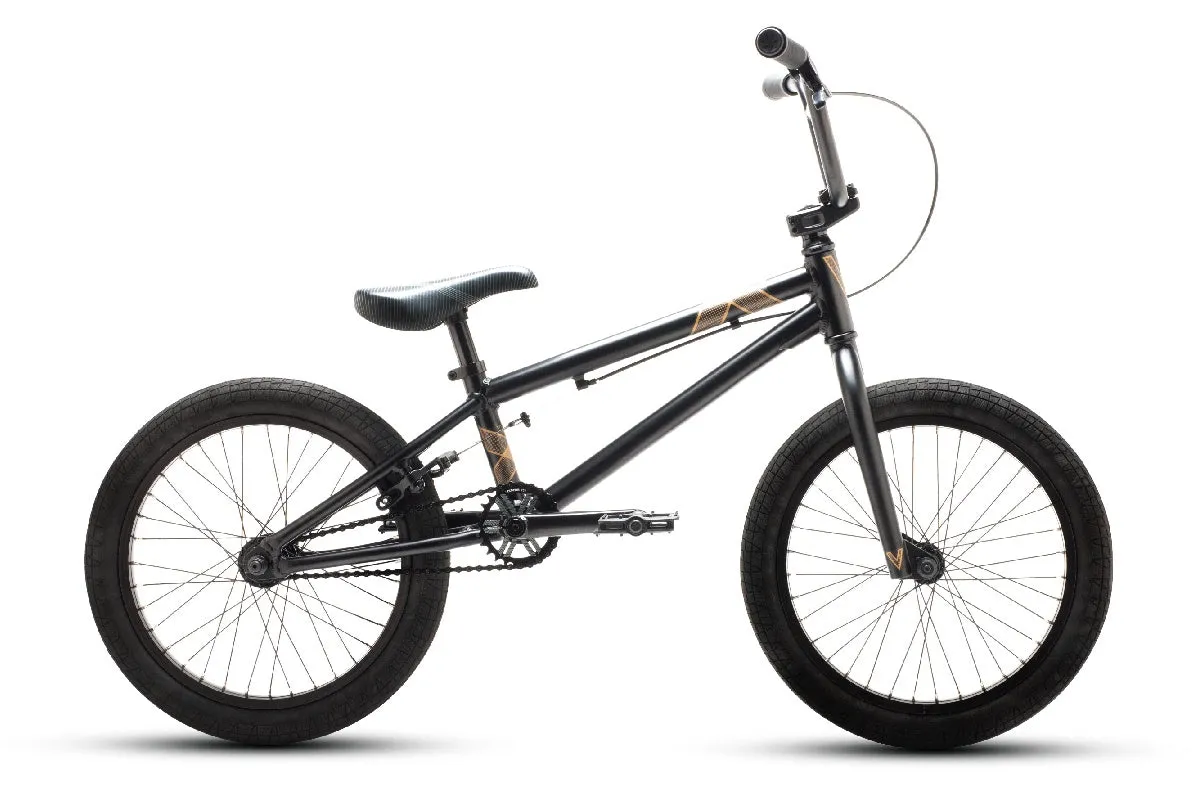

2021 Verde Vectra 18
The Vectra is built with the smaller rider in mind. The frame is made from 6061 aluminum to save weight and the top tub sits lower than normal to help the shorter riders with clearance.
Frame Geometry
- Frame: 6061 aluminum frame frame w/ standard head tube, Mid BB, top tube gusset w/ Verde logo
- Top Tube Length: 19”
- Chain Stay Length 13.5”
- Head Tube Angle: 74.5º
- Seat Tube Angle: 71º
- Bottom Bracket Height: 11.7”
- Standover Height: 6”
Parts Spec
- Fork: Hi-ten steel w/ 2-piece steerer tube, tapered legs
- Bars: Hi-ten steel, 8.25” rise
- Stem: Verde top load, 40mm reach
- Headset: Standard 1-1/8”
- Brake: Alloy U-brake
- Lever: Alloy, 2-finger design
- Rear Hub: Verde 100, fully sealed, alloy, 14mm axle, 9-tooth driver
- Front Hub: Verde 100, fully sealed, alloy, 3/8” axle
- Sprocket: Verde Recon 25-tooth, chromoly
- Cranks: Tubular chromoly 3-piece, 160mm
- BB: 19mm sealed Mid
- Chain: KMC 410, black
- Pedals: DUO Brand Resilite platform
- Front Rim: 6061 aluminum, single wall, 36-hole
- Rear Rim: 6061 aluminum, single wall, 36-hole
- Spokes: Black w/ silver nipples
- Front Tire: 2.35” DUO Brand Stun 1, 65 psi
- Rear Tire: 2.35” DUO Brand Stun 1, 65 psi
- Seat: Verde Hex w/ integrated post
- Seat Post: Uni-style, integrated, alloy, 27.2mm diameter, 150mm length
- Seat Clamp: Alloy, 31.8mm, black
- Grips: Verde Tree grips w/ press-in Verde bar ends
- Weight: 21.4 lbs / 9.71kg
